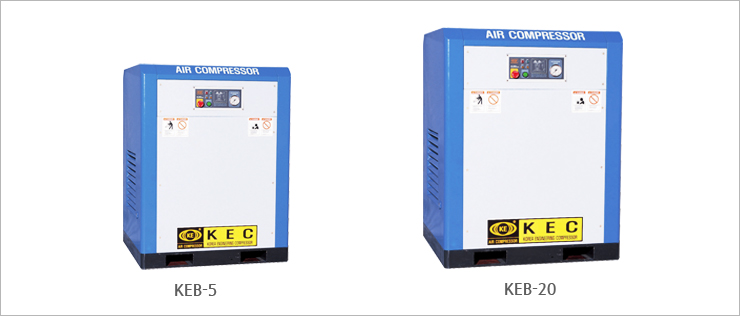

HOME  >  PRODUCT  >  KE Series : Piston Type

 Package Type

Features
- Excellent Durability
Precision design, special materials and special heat treatment guarantee long life span because of less abrasion and distortion.

- Low Noise and Vibration(Utility Model 20-2003-0031170)
The disadvantage of a Piston Compressor causing noise pollution was completely eliminated by researches for a long time. In particular, experienced technical specialists realize smooth and slow moving reciprocation through repeated tests.

- Adoption of Automatic Pressure Switch Type and Automatic Unloader Type
We extend the life span of a Compressor and ensure proper volume of air.

- High Discharge Efficiency (Utility Model 20-2003-0031171)
The cylinder with distinguished cooling efficiency by independent designs makes beautiful appearance and the life span of a Compressor is also extended.

- Low Consumption of Lubricant Oils
The cylinder independently developed by KEC is proud of remarkable cooling effects. It runs at low temperature and generates clear and pure compressed air as well as extends the life span of lubricant oil.

Specifications & Dimensions
Model Outlet Working
pressure		 Piston
displace
ment		 Compressor Air
Receiver
Tank		 Air
Outlet		 Aporoxnet
Dimentions
l×w×h		 Weight
(Without
Motor)
Bore x Stroke x
No.of Cyl.		 Revolution
Kw(HP) Kgh/㎠ l/min mm×mm RPM
 L PT mm×mm×mm Kg
KEB-5 3.7(5) 7.5~9.9 618 90×108×2 450   15A 900×1000×1300 190
KEB-7 5.5(7.5) 934 680
KEB-10 7.5(10) 1272 90×100×4 500 20A 300
KEB-15 11(15) 1909 750 310
KEB-20 15(20) 2519
 90×100×6 660 500
